Wide View Tablet
Wide View Tablet
QuickTemp Tablet – Wide View:
Quickly & Easily Identify Potential Risks
As the world evolves, new challenges are faced by businesses around the globe to ensure they keep their customers, guests, & employees safe. All businesses regardless of size will be expected to demonstrate their commitment to delivering a safe environment & technology will play a key role in achieving this

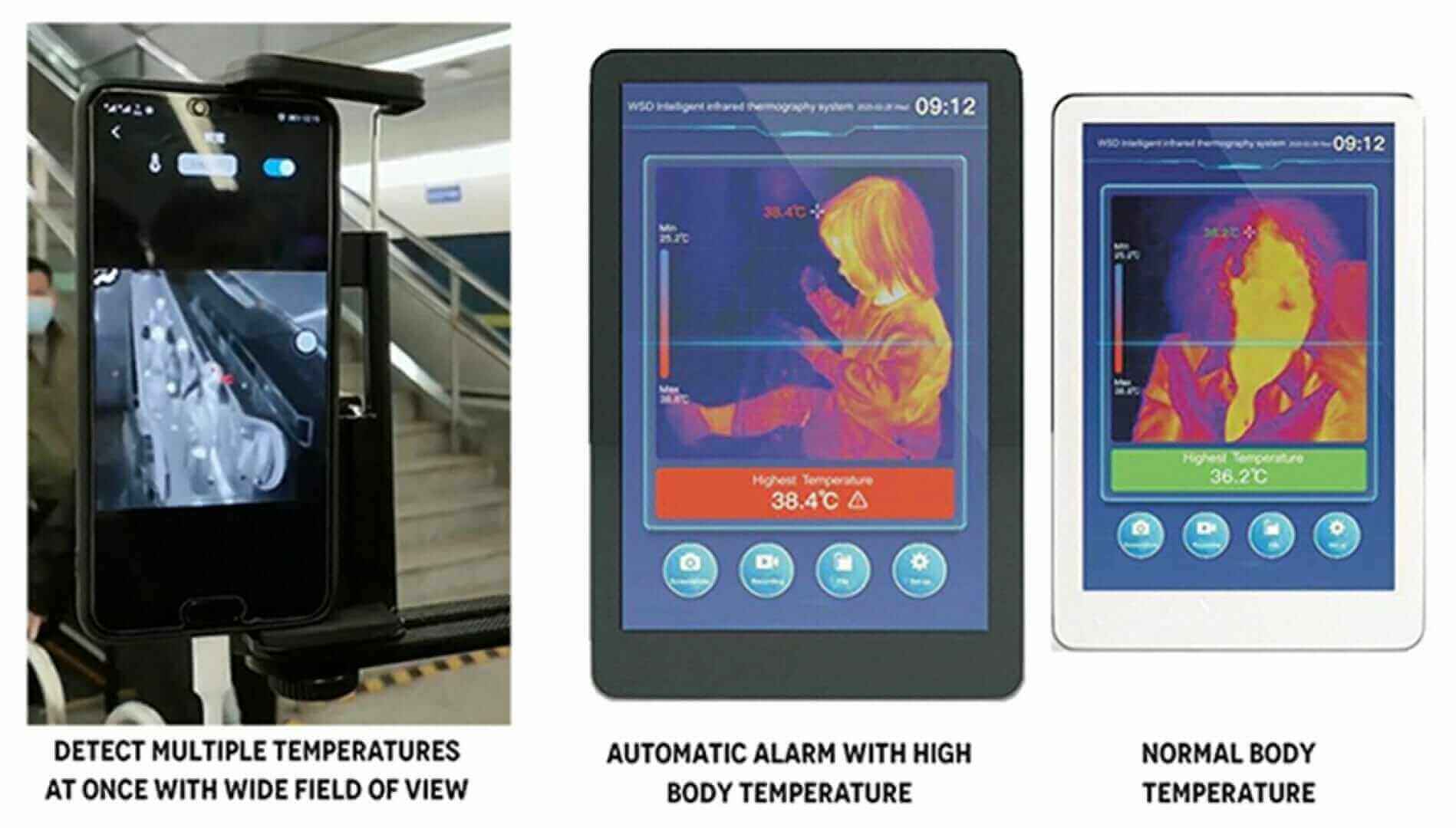

While many measures will be necessary, being able to quickly and unobtrusively identify potential risks will be critical. Our Human Body Temperature (SFV) can be utilized to efficiently scan body temperatures of numerous people simultaneously from a distance of up to 9’. This allows you to quickly and efficiently scan in a busy public place or store entrance, and identify potential risks before they enter your premises.
Ideal when used in conjunction with our Single View model, enabling any abnormal reading to be scanned a second time on a Single Field View device while maintaining full traffic flow and preventing the need for long lines when many people need to be checked at the same time.
Technical Specifications:
| MODEL NUMBER | CPT-HBT-WFV |
|---|---|
| HARDWARE | |
| SENSOR TYPE: | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
| SPECTRAL RANGE: | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
| SPECTRAL RANGE: | 8-14 u m |
| RESOLUTION: | 256 x 192 |
| PIXEL SPACING: | 12 u m |
| IMAGE FRAME RATE: | 25Hz |
| NON-UFORMITY CORRECTION: | Automatic Shutter Correction |
| MRTD | .500mK (+/- 0.5 °C) |
| THERMOMETRY RANGE: | 30°C - 45°C (High-Gain) |
| THERMOMETRY PRECISION: | +/- 0.3 °C Operating |
| DISTANCE: | 3’ – 9’ |
| OPERATING CORRECTION: | Manual/Auto |
| CONNECTOR: | USB/Type C |
| POWER: | 0.5W |
| WORKING CURRENT: | 1.0A max |
| WORKING VOLTAGE: | 5.0V |
| DIMENSIONS: | 64 x 34 x 13mm |
| WEIGHT: | 50g |
| SOFTWARE | |
| OPERATING SYSTEM: | Android |
| IMAGE ENHANCEMENT: | Digital Detail Enhancement |
| IMAGE CORRECTION: | Manual |
| COLOR PLATE: | White, Black, & Multiple Pseudo Color Versions |
| GRIP: | Supports SDK Development |
| THERMOMETRY STATS: | Max/Min/Central Temperature Display |
| DOCUMENT SAVING: | Supports Image & Video Saving |
| SOFTWARE UPDATE: | Online Software Updating |
| WORK LOG: | Screenshots, Processing Results, & Statistics for Abnormal Body Temperature |
QuickTemp Wide View Disclaimer:
QuickTemp Wide View Tablets are designed to detect temperature anomalies. It’s important to understand there are many factors – including environmental and physiological – that can impact a person’s surface temperature reading. Skin surface temperature vs actual core body temperature may differ either way. The QuickTemp Wide View Tablets must be operated in accordance with the manufacturer’s User Guide. QuickTemp Wide View should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other disease or health condition. QuickTemp Wide View Tablets should only be used to detect variations in surface temperature. Elevated body temperature in the context of use should be confirmed with secondary evaluation methods, such as a non-contact infrared thermometer or clinical grade contact thermometer. Absence of an elevated skin temperature does not preclude a fever.
This device is not FDA-cleared or approved.
FAQs
This device is designed for busy areas where many people are passing through at once
Temperature Checks – Facial Recognition – & Results-Based Entry-Management
1 – 9 feet
Approximately 1 second
5 people at a time
30,000 images can be stored
Options available for freestanding & fixed placement, but this is typically a portable unit
+/- 0.3 degrees Celsius
No. This is a local device designed for local operation only
Yes, absolutely!
